WETLAND RESEARCH AND EDUCATION CENTER

/ 2015000
©陈颢

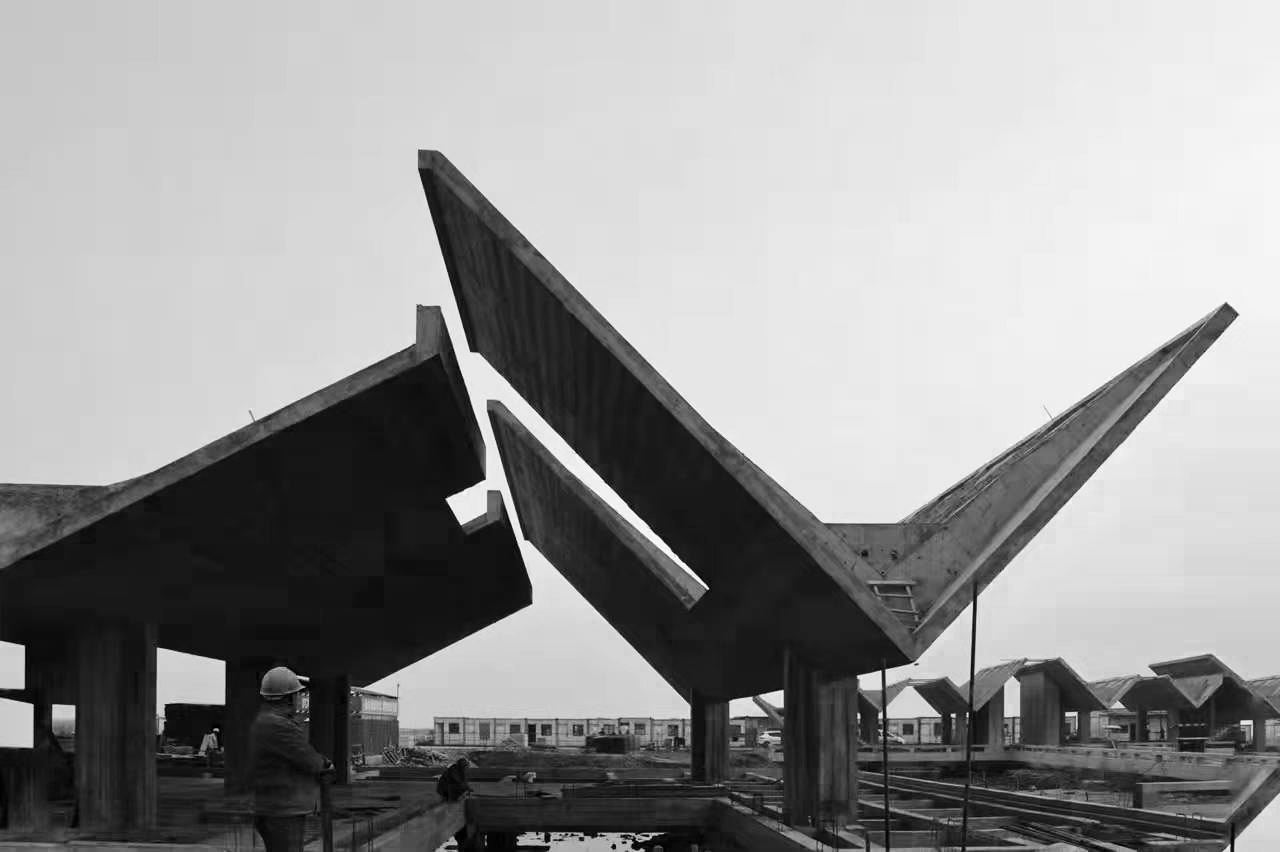

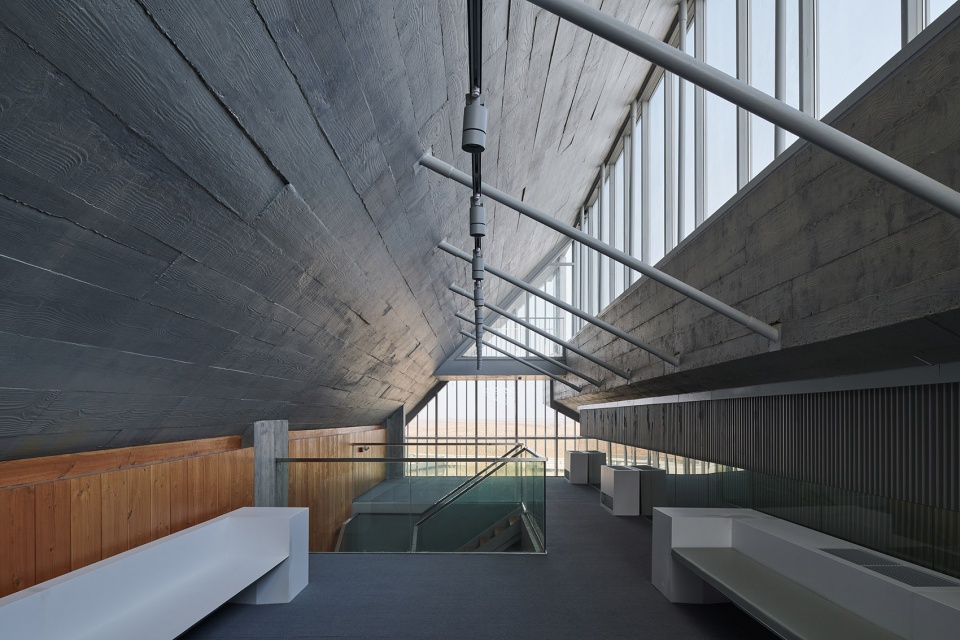

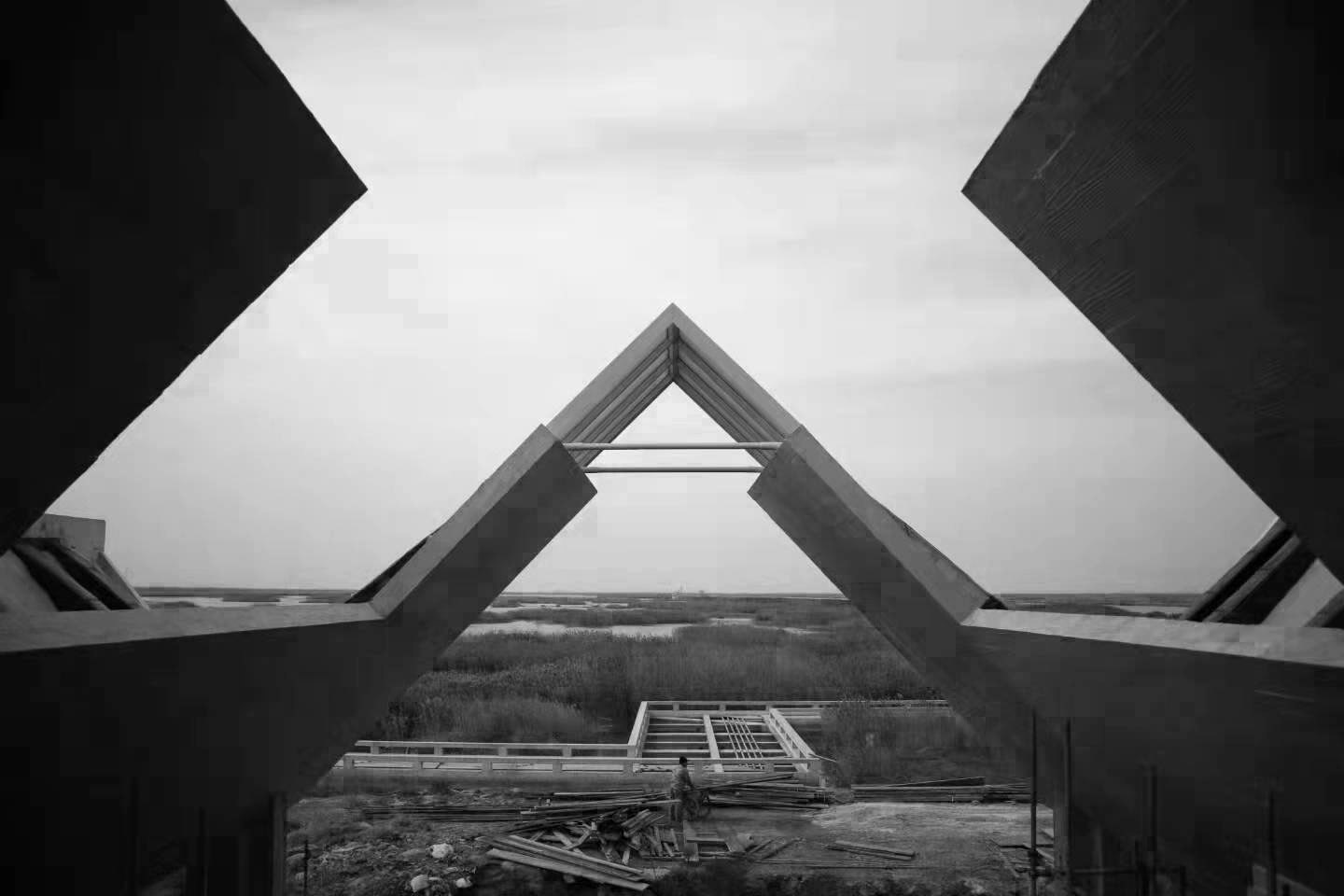

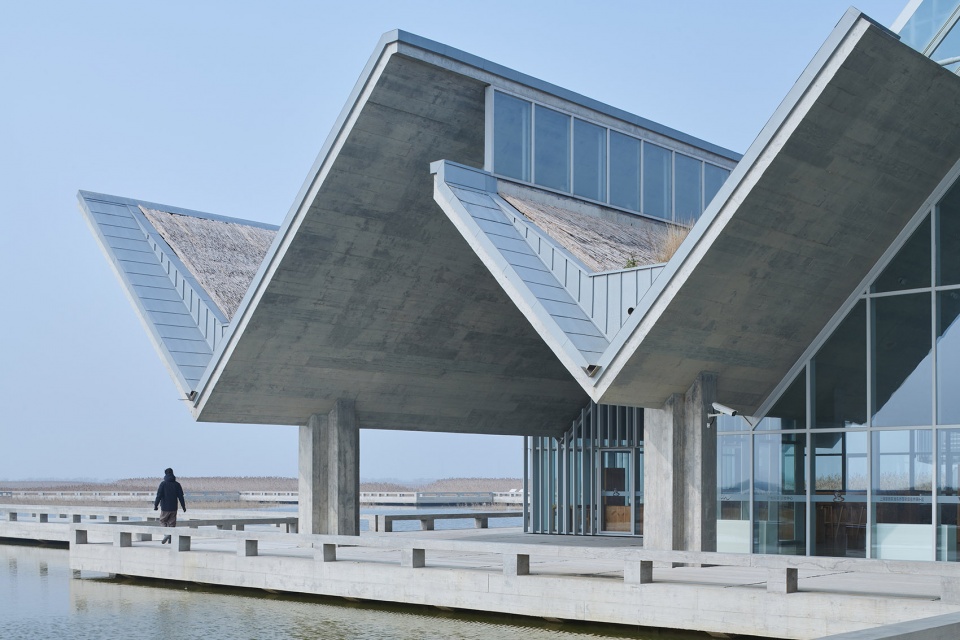

The structure is composed by a series of Y shape units, with each one being cantilevered column system consisting a few steel-encased RC columns in cruciform. Cruciform are chosen for columns to mitigate the impression of the structure bulkiness. Structural deformation between units are controlled by the steel rods linking the V-shape panels. They were installed afterwards to release the force from dead load, thus reducing the size. Ribs over the V-shape panels are hidden in thatched layer on the roof.

©陈颢
©陈颢
©陈颢
©致正
©致正
Phase:
Schematic Design
Team Member(s):
ZHANG Zhun
Architects:
Atelier Z+
Location:
Shanghai Chongming Dngtan National Nature Reserve
Scale:
4092 sqm
Design/Completion:
2015/2019
Structural Traits:
SRC cantilevered column system with connecting rods installed afterwards
